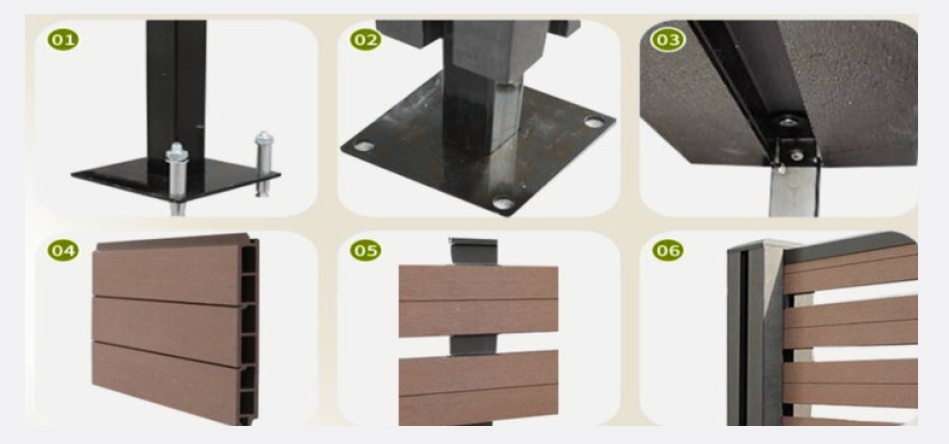

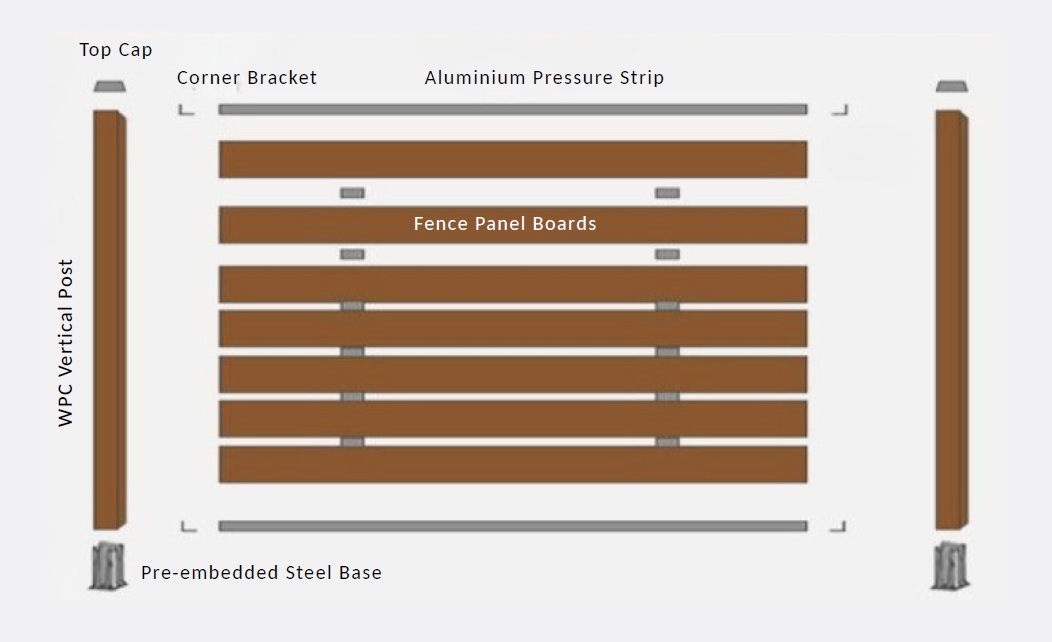

Installation Steps
Step 1:
Determine the installation position and drill the fixing holes. Secure the galvanized steel
base using expansion bolts. (Refer to Image 01)
Step 2:
Insert the vertical post onto the steel base and secure both sides accordingly. (Refer to
Image 02)
Step 3:
Install the bottom aluminium alloy pressure strip. (Refer to Image 03)
Step 4:
Insert the fence panels one by one into the slots of the vertical posts. (Refer to Image 04)
Step 5:
Install spacing strips if gaps are required for ventilation or design preference. For a fully
enclosed fence appearance, spacing strips may be omitted.
(Refer to Image 05)
Step 6:
Once the panels are fully installed, secure the top aluminium alloy pressure strip using
corner brackets. Finish by installing the top cap to complete the installation. (Refer to
Image 06)
